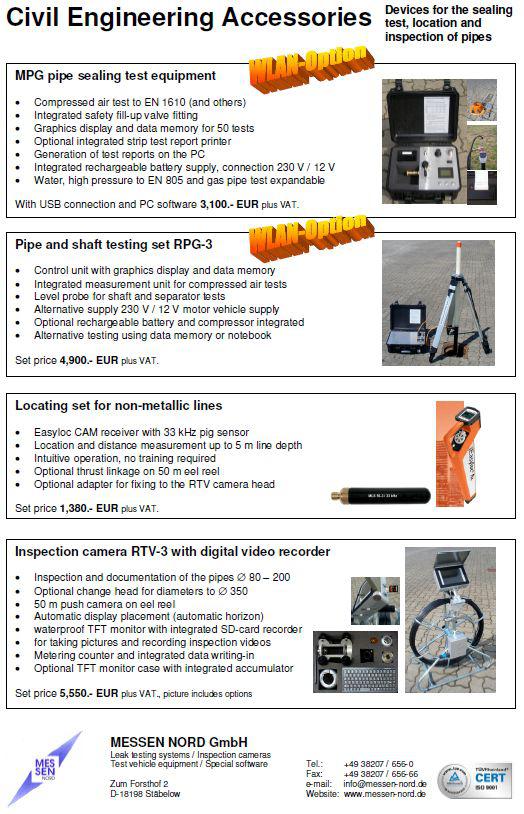

Civil Engineering Accessories Devices for the sealing test, location and inspection of pipes MPG pipe sealing test equipment - Compressed air test to DIN EN 1610 (and others) - Integrated safety fill-up valve fitting - Graphics display and data memory for 50 tests - Optional integrated strip test report printer - WLAN-Option for remote access - Generation of test reports on the PC - Integrated rechargeable battery supply, connection 230 V / 12 V - Water and high pressure test expandable With USB connection and PC software 3,100.- EUR plus VAT Leak detector MPG Request Catalogue Air pressure leak detection device (test case) with integrated security fill valve, testing computer, data storage and tape printer to print results directly on-site. No matter whether for testing service providers, restoration companies and civil engineering contractors: the MPG is the best portable, robust and easy to use leak detector for everyday use on construction sites. The preparation of a detailed test report happens on the office computer from the stored data. House service connection test following ATV/DWA-M 143 Part 6 or DIN 1986 Part 30: For the examination of existing lines to ATV / DWA-M 143 (public areas) or DIN 1986 Part 30 (private house service connections), there exists the additional option to run a water test (water pressure testing, water pressure test), so that the leak test can be conducted using either air or water. High pressure testing of pipelines / drinking water lines / pressurised waste water lines: with the optional high pressure testing tests may be conducted according to, for example, DIN EN 805 as well as freely defined test procedures for industrial installations. Test Software is available in following languages: german, english, french, dutch, italian, polish, czech, spanish, portuguese, croatian, danish, Data sheet MPG, Data sheet MPG french, Example test results air, water, high pressure testing (integrated strip printer), Example test results air testing using PC software, Product overview - Construction Accessories / Offer Flyer Pipe and shaft testing set RPG-3 - Control unit with graphics display and data memory - Integrated measurement unit for compressed air tests - Level probe for shaft and separator tests - Alternative supply 230 V / 12 V motor vehicle supply - Optional rechargeable battery and compressor integrated into the test case - Alternative testing using data memory or notebook Set price 4,900.- EUR plus VAT Leak detector RPG-3 Request Catalogue The specialist for the construction site. The RPG is a proven system for self-monitoring in pipeline and sewer construction and in renovation work. It has been in service for many years and is a robust and flexible tool for air leak detection according to DIN EN 1610. Options such as an integrated compressor, a powerful rechargable battery and modular expansion packs for shaft, vacuum and high-pressure testing show the diversity of the daily requirements placed on the device. Using the integrated testing computer there is sufficient storage for 50 test results, this means no PC is needed on site, pressure readings and test results can be displayed on the graphical display. The test reports are later uploaded to and processed on a separate PC. Test Software is available in following languages: german, english, french, dutch, italian, polish, czech, spanish, portuguese, croatian, danish, fileadmin/Media/PDF/RPG3.pdf Data sheet RPG-3 englisch Datenblatt RPG-3 french, Data sheet - RPG-3 manhole / separator test Data sheet RPG-3 french, Data sheet RPG-3 portugesian LGA approval for the testing of separators according to DIN 1999-100 / DIN 4040-100 dated 07 Feb 2000, approval no. 0020220-01 Tags: Test case, pressure test case, pressure calibrator, pressure test briefcase, level probe, shaft sensor, water level testing, septic tank tester, waste water treatment plant testing, tank testing, Septic tank testing, water pressure test, pressure test, service connection test, service connection testing device, service connection test system, MATV test unit, vacuum testing, vacuum testing, vacuum ejector, leak testing of private sewers and waste water systems The leak-testing device RPG-3 and the level-measuring device SP04 were also used during a comparative study of different testing devices by the engineering firm Goldberg. The following technical papers dealing with the technical equipment requirements and the legal conditions to carry out leak tests., WWT article from May 2007: Leak detection - how?, WWT article from September 2008: Leak detection - Who can do it?, Textbook: Leak testing of property drainage systems, Synopsis Goldberg leak testing, Synopsis Goldberg small waste water treatment plants, Article Goldberg leak testing, Goldberg leak test - list of contents Foreword Excerpt Subject index, Goldberg small waste water treatment plants - list of contents Excerpt Subject index Locating set for non-metallic lines - Easyloc CAM receiver with 33 kHz pig sensor and bag - Location and distance measurement up to 5 m line depth - Intuitive operation, no training required - Optional thrust linkage on 50 m eel reel - Optional adapter for fixing of the sensor to the RTV camera head Set price 1,380.- EUR plus VAT. Pipe locator / Drain Locators Request Catalogue For locating pipe transitions, or damaged areas, the inspection camera RTV-COLOR is equipped with a transmitter (pig transmitter). With the pipe locator EASYLOC the location and depth of the actual camera position can be detected. The device is used to locate and determine the depth of wastewater drains and lines as well as other non-metallic supply lines and waste pipes. An optional module permits the coupling of the sender signal in metal lines, electrical cables or the inspection camera itself and therefore their location. Tags: Pipe location equipment, camera tracking, depth positioning, Additional Information locator EASYLOC RX CAM, Application description for the locating system SEBA / KMT, Product overview - Construction Accessories / Offer Flyer Inspection camera RTV-3 with digital video recorder • Inspection and documentation of the pipes Æ 80 – 200 • Optional change head for diameters to Æ 350 • 50 m push camera on eel reel • Automatic display placement (automatic horizon) • waterproof TFT monitor with integrated SD-card recorder • for taking pictures and recording inspection videos • Metering counter and integrated data writing-in • Optional TFT monitor case with integrated accumulator Set price 5,550.- EUR plus VAT., picture includes options RTV-3 Inspection Camera with Digital Video Recorder Request Catalogue Push rod camera system RTV COLOR delivered with glass fibre sliding reels and camera cable drum, inspection of pipes with diameters from 50 - 350 mm, automatic upright image, change head, electronic distance counting and data display, TFT monitor IP65, digital video recorder, location transmitter and receiver to position and locate the depth, monitor case with daylight visible TFT display, data display, battery supply and digital video recorder. Tags: Push rod camera, House connection inspection camera, sliding camera, shock camera, shock camera, upright / upright image, automatic horizon, pipe camera, Channel camera, camera tracking, TFT Monitor Case, TV inspection software WinCam, channel TV systems, channel TV software, video documentation of cases, Insertion meters, Data display in monitor, video capture in MPEG-2, MPEG-4, AVI, Digital Image Storage , Data sheet - RTV-COLOR, Data sheet - RTV-COLOR (French), Product overview - Construction Accessories / Offer Flyer Product overview - Inspection camera systems / Offer Flyer Kontaktieren Sie uns gern, wenn Sie Interesse an unseren Produkten haben. Link zur Homepage mit ausgewählten Anwendungsbeispielen und dem Kontaktformular: http://www.messen-nord.de/products/drain-testing-and-inspection.html?L=1 MESSEN NORD GmbH Zum Forsthof 2 18198 Stäbelow b. Rostock Tel. +49 (38207) 656-0 Fax +49 (38207) 656-66 Ansprechpartner: Dipl.-Ing. Steffen Machka ( persönliche E-Mail schreiben ) Tel. +49 (38207) 656-16 Mobil +49 (175) 4152354
|
